Thin coat stop bead - 3mm x 3m To suit 3mm skim coat Greatly reduces the time in forming end stops Finishes and reinforces the edges of thin-coat plaster

Read more less

Birtley Steel Lintel CB90 is a versatile lintel that offers a robust solution for supporting openings in masonry walls. With a length of 2100mm, it is suitable for openings up to 1800mm. The lintels dimensions include a masonry outer leaf of 100mm, a cavity of 90mm-110mm, and a masonry inner leaf of 100mm. The lintel depth is 280mm and the lintel height is 138mm. It has a maximum UDL of 20kN and a weight of 17.64Kg. Product Features: Dimensions: The lintel measures 2100mm in length, 280mm in depth, and 138mm in height. Maximum Opening: Suitable for openings up to 1800mm. Masonry Leaves: Features a masonry outer leaf of 100mm and a masonry inner leaf of 100mm. Cavity: Suitable for cavities of 90mm-110mm. Lintel Weight: Weighs 17.64Kg. Lintel Type: Standard Duty Cavity Lintel. Material: Made of steel. Maximum UDL: Has a maximum UDL of 20kN.

Read more less

Birtley Steel Lintel CB90 is a versatile and robust solution for supporting openings in masonry walls. With a length of 3000mm, this lintel is suitable for various applications, accommodating a maximum opening of 2700mm and cavities between 90mm and 110mm. Product Features: Dimensions: The lintel measures 3000mm in length, 280mm in depth, and 181mm in height. Maximum Opening: It supports openings up to 2700mm in width. Cavity: This lintel is designed for cavities between 90mm and 110mm. Load Capacity: It can support a maximum uniformly distributed load (UDL) of 26kN. Weight: The lintel weighs 36kg, ensuring stability and durability. Corrosion Protection: Birtley Steel Lintels are hot-dip galvanized after manufacturing, providing superior corrosion protection.

Read more less

Birtley Supergalv Lintels are renowned for their superior corrosion protection. The lintel is hot-dip galvanized after fabrication, providing comprehensive coverage to all surfaces, edges, and welds. This process results in a minimum zinc coating thickness of 65um, which is significantly more than other lintels. The optional Ultragalv 2000 (U2k) corrosion protection system further enhances the lintels longevity by depositing a 150um thick zinc coating, offering up to 7 times more protection compared to other lintels. Product Features: Dimensions: 1800mm in length, 280mm in depth, and 132mm in height. Maximum Opening: Suitable for a maximum opening of 1500mm. Cavity: Suitable for a cavity of 90-110mm. Masonry Leaves: Suitable for 100mm thick masonry outer and inner leaves. Load-bearing Capacity: Maximum load-bearing capacity of 20kN. Weight: With a weight of 15.12kg, this lintel is easy to handle. Corrosion Protection: Hot-dip galvanized after fabrication, with optional Ultragalv 2000 (U2k) corrosion protection system.

Read more less

Birtley Steel Lintel CB90 is a robust and corrosion-resistant solution for creating openings in masonry walls. With a length of 2400mm, this standard duty cavity lintel is suitable for openings with a maximum size of 2100mm. It features a lintel height of 151mm and a depth of 280mm, making it an ideal choice for various construction projects. Product Features: Dimensions: Each lintel measures 2400mm in length, 280mm in depth, and 151mm in height. Maximum Opening: The lintel supports openings with a maximum size of 2100mm. Material: Made of steel for durability and strength. Lintel Weight: Weighing 24.96 kilograms, it offers a balance between ease of handling and robustness. Load Capacity: The lintel can support a maximum UDL (Uniformly Distributed Load) of 22 kN. Corrosion Protection: Hot-dip galvanized after manufacture for superior corrosion resistance.

Read more less

Birtley Steel Lintel CB90 is a robust and efficient cavity lintel designed for use in masonry constructions. This lintel, with a length of 2700mm, is a valuable addition to any building project, ensuring structural integrity and thermal efficiency. Product Features: Dimensions: The lintel has a length of 2700mm, a width of 280mm, and a height of 181mm. Maximum Opening: Suitable for openings with a maximum of 2400mm. Masonry Outer Layer: Designed for a 100mm masonry outer layer. Cavity: Suitable for cavities between 90mm and 110mm. Masonry Inner Layer: Designed for a 100mm masonry inner layer. Maximum Load Capacity: Capable of supporting a maximum load of 26kN. Weight: Weighing 32.4kg, this lintel offers a balance between durability and ease of handling.

Read more less

Birtley Steel Lintel CB90 is a robust and reliable solution for supporting openings in masonry walls. With a length of 1500mm, this standard duty cavity lintel is suitable for openings with a maximum width of 1200mm and a cavity of 90-110mm. Its dimensions and load capacity make it an ideal choice for various construction projects. Product Features: Dimensions: The lintel measures 1500mm in length, 280mm in depth, and 106mm in height. Maximum Opening: It supports openings with a maximum width of 1200mm. Cavity: This lintel is designed for cavities ranging from 90mm to 110mm. Load Capacity: It can support a maximum uniformly distributed load (UDL) of 15kN. Weight: The lintel weighs 11.1kg, ensuring ease of handling during installation. Corrosion Protection: Birtley Steel Lintels feature hot-dip galvanization for superior corrosion protection.

Read more less

Birtley Steel Lintel CB90 is a versatile and robust solution for creating openings in masonry walls. With a length of 1200mm and a maximum opening of 900mm, this lintel is suitable for various applications in construction projects. Product Features: Dimensions: The lintel measures 1200mm in length, 280mm in depth, and 106mm in height. Maximum Opening: The maximum opening size is 900mm. Masonry Outer Leaf: The outer leaf of the masonry has a thickness of 100mm. Cavity: The cavity width ranges from 90mm to 110mm. Masonry Inner Leaf: The inner leaf of the masonry has a thickness of 100mm. Lintel Depth: The lintel depth is 280mm. Lintel Height: The lintel height is 106mm. Maximum UDL: The maximum uniformly distributed load is 15kN. Lintel Weight: The lintel weighs 7.08kg. Standard Duty: This lintel is designed for standard duty applications. Cavity Walls: It is suitable for use in cavity walls.

Read more less

Metal I Studs are used in the construction of stud walls and are the vertical component of the system. These high performance internal framing profiles are fully compatible with all makes of plaster board and ensure quick and reliable installation. I Studs are available in a range of sizes from 50mm to 146mm. Technical Specification Section : I Stud Size : 60mm Length : 2400mm Pieces Per Pack : 10 Sales Unit : Pack

Read more less

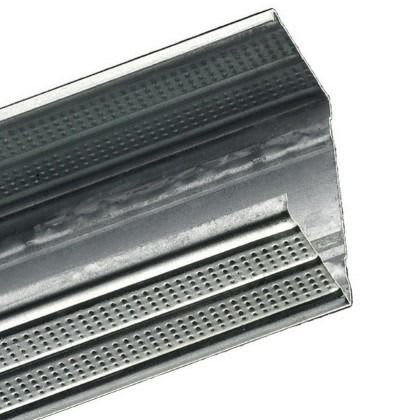

Metal C Studs are used in the construction of stud walls and are the vertical component of the system. These high performance internal framing profiles are fully compatible with all makes of plaster board and ensure quick and reliable installation. C Studs are available in a range of sizes from 50mm to 146mm. Technical Specification Section : C Stud Size : 60mm Length : 2700mm Pieces Per Pack : 10 Sales Unit : Pack

Read more less

Metal C Studs are used in the construction of stud walls and are the vertical component of the system. These high performance internal framing profiles are fully compatible with all makes of plaster board and ensure quick and reliable installation. C Studs are available in a range of sizes from 50mm to 146mm. Technical Specification Section : C Stud Size : 60mm Length : 3000mm Pieces Per Pack : 10 Sales Unit : Pack

Read more less

Metal C Studs are used in the construction of stud walls and are the vertical component of the system. These high performance internal framing profiles are fully compatible with all makes of plaster board and ensure quick and reliable installation. C Studs are available in a range of sizes from 50mm to 146mm. Technical Specification Section : C Stud Size : 60mm Length : 3600mm Pieces Per Pack : 10 Sales Unit : Pack

Read more less
